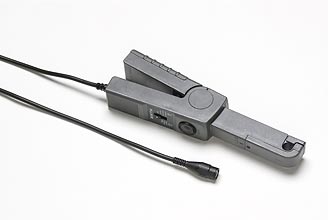

80i-110s 交/直流电流钳

厂家：FLUKE
型号：80i-110s

AC/DC Current clamp

The 80I-110s is compatible with any Fluke ScopeMeter Test Tool, Power Harmonics Analyzer, Oscilloscope, Multimeter, or other voltage measurement device that has the following features: BNC input connectors or if using a meter convert the banana plugs to a BNC connector using the adapter PM9081/001.

Current Range: 0.1 to 100A DC or 0.1 to 70A AC
Basic Accuracy (DC to 1kHz):
100mV/A setting: 50mA to 10A +/- 3% of reading + 50mA
10mV/A setting: 50mA to 40A +/- 4% of reading + 50mA
40A to 80A +/- 12% of reading + 50mA
80 to 100A +/- 15% of reading
Output Signal: 10A range: 100mV/A | 100A range: 10mV/A
Bandwidth: 1Hz to 20kHz
Working Voltage: 600V AC rms
Maximum Conductor Size: 11.8 mm (.46 inch) diameter
Safety Rating: IEC 1010 and CSA-C22.2 No. 1010-1 Installation Category II, Working Voltage 600V

Specifications

Nominal current range

	10 A, AC/DC
	100 A, AC/DC

Continuous current range

	0.1 A - 10 A AC/DC
	1 A - 100 A AC/DC

Maximum Non-Destructive Current

140 A - 2 kHz

Lowest measurable current

0.1 A

Basic Accuracy

	3% + 50 mA (@ 10 A)
	(% reading + floorspec)

Useable frequency

DC - 100 kHz

Output level(s)

	100 mV/A
	10 mV/A

Zero error adjustment

Yes

Safety Specifications

Safety

	CAT II, 600 V
	CAT III, 300 V

Maximum voltage

600 V

Mechanical & General Specifications

Warranty

1 year

Battery Life

9 V, 55 h

Maximum conductor diameter

11.8 mm

Output cable length

1.6 m

BNC Adapter

Yes
